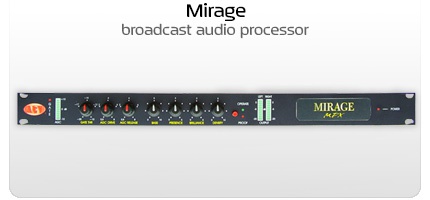

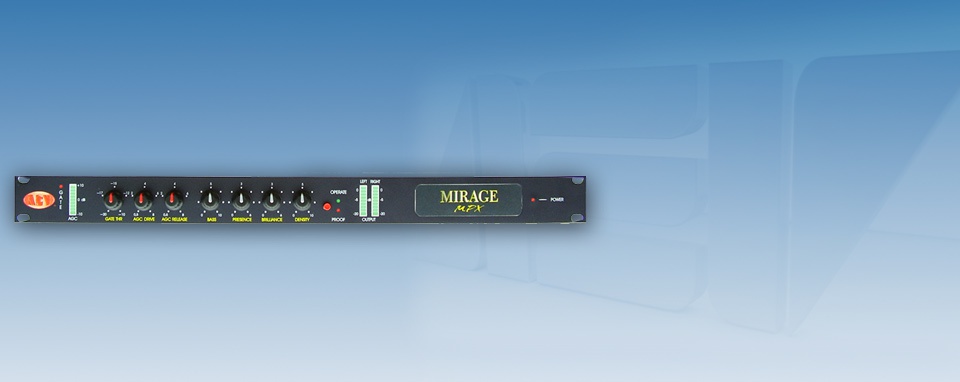

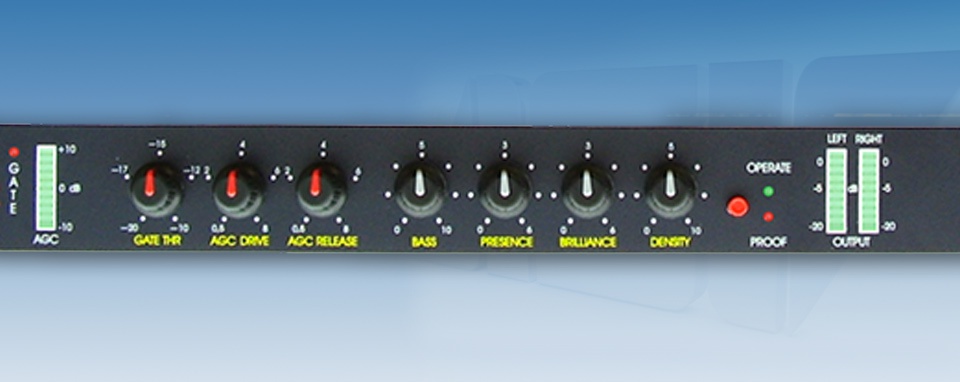

AEV Mirage to atrakcyjny cenowo procesor emisyjny dla nadawców radiowych pamiętających, iż jakość dźwięku jest wizytówką ich rozgłośni.
Urządzenia spełnia podstawowe, ale niezwykle ważne w systemie radiofonicznym funkcje:
Przemyślane połączenie funkcji występujących w procesorze Mirage sprawia, że jest on w pełni wystarczającym urządzeniem pośredniczącym między konsoletą a nadajnikiem.
Frequency response: | 30 Hz ÷ 15 KHz ± 0,3 dB (By-pass) |
AGC Control: | ± 10 dB |
Stop Band Rejection: | > 90 dB above 75 KHz |
Noise: | Output noise depends by processing parameters; AGC, threshold, gain and density Greater than 84 dB Din Audio (By-pass). |
Total distortion @ 1 KHz: | Than less 0,05% |
Crosstalk L/R R/L: | Greater than 60 dB Din Audio (90 dB at 3 KHz). |
AUDIO INPUT: |
|
Configuration: | Left and Right |
Impedance: | 10 KΩ electronically balanced |
Input level: | – 20 ÷ +10 dBm |
Common-mode rejection: | Greater than 50 dB, (30 ÷ 15.000 Hz) |
Connector: | XLR Female |
AUDIO OUTPUT: | |
Configuration: | Left and Right, Flat, Pre-enphasized or De-enphasized (50 o75mS). |
Impedance: | 100 Ω electronically balanced |
Connector: | XLR Male |
STEREO ENCODER (*): |
|
Configuration: | 1 Output with level control |
Pilot frequency: | 19 KHz ± 0,001 % max over temp. |
Pilot injection: | 4 ÷ 12 % adjustable |
Distortion at 1 KHz: | Less 0,005 % |
Signal-to-Noise ratio: | Greater than 92 dB DIN AUDIO |
Stereo separation: | Greater than 60 dB 30 ÷ 15 KHz (70 dB at 1 KHz) |
Crosstalk Main to Sub: | Greater than 45 dB 30 ÷ 15 KHz (75 dB at 1 KHz) |
Crosstalk Sub to Main: | Greater than 40 dB 30 ÷ 15 KHz (75 dB at 1 KHz) |
38 KHz subcarrier suppression: | Greater than 80 dB |
76 KHz and sideband suppression: | Greater than 90 dB |
Composite output level: | 0 ÷ + 12 dBm |
Impedance: | 50 Ω |
Connector: | BNC floating |
Max cable length: | 10 mt. RG58 A/U |
Pilot reference output: | 1 Vpp sq. wave |
Impedance: | 600 Ω |
Connector: | BNC floating over chassis |
SCA input: | -14 ÷ + 6 dBm for 10% modulation of main carrier |
Input impedance: | 10 K Ω |
Connector: | BNC floating over chassis |
RDS level: | -24 ÷ 0 dBm for ± 2 KHz of main carrier |
Input impedance: | 10 K Ω |
Connector: | BNC floating over chassis |
GENERAL DATA: | |
Power supply: | 87 ÷ 265 VAC 50-60 Hz |
Power consumption: | 8 VA |
Dimensions: | (19″x 9.4″x 1.7″) 48,3 x 24,0 x 4,4 cm 1 rack unit |
Weight: | 8.4 Lbs (3,8 Kg) |
Operating temperature: | 0 ÷ 50 °C |
