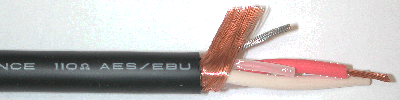

MOGAMI 3173 kabel do przesyłu sygnałów audio zgodnie z AES/EBU 110 Ohm na duże odległości ( 300m).
Mogami 3173 służy do przesyłania cyfrowych sygnałów audio, zgodnie z e standardem AES / EBU na długie odległości ( 300 m) Wymagana impedancja 110 omów została zachowana i tolerancja wynosi jedynie ± 5% ( norma +/-15%) . Dystans do 300 m transmisji jest bezstratny.
Pojemność kabla jest jeszcze mniejsza niż w najlepszych kablach analogowych .
Kabel 3173 jest bardzo poręczny , plastyczny i miękki. Łatwy w montażu .
SPECIFICATIONS
Configuration | ||||||
Part No. | W3159 | W3228 | W3080 | W3135 | W3173 | |
No. of Conductor | 2 | 2 | 2 | 2 | 2 | |
Conductor | Details | 7/0.20A (7×#32AWG) | 36/0.08OFC (36×#40AWG) | 7/0.18A (7×#33AWG) | 7/0.18A (7×#33AWG) | 19/0.25A (19×#31AWG) |
Size | 0.22mm² (#24AWG) | 0.18mm² (#25AWG) | 0.178mm² (#25AWG) | 0.178mm² (#25AWG) | 0.932mm² (#18AWG) |
|
Insulation | Ov. Dia. (mm) |
1.35Ø (0.053") | 1.35Ø (0.053") | 1.36Ø (0.054") | 1.36Ø (0.054") | 2.8Ø (0.110") |
Material | CPP | XLPE | XLPE | XLPE | CPP | |
Colors | Red/Light green | Red/Clear | Red/Clear | Red/Clear | Red/White | |
Mono- filament Filler |
Ov. Dia. (mm) |
- | - | - | 1.87Ø (0.0736") | |
Material | Cotton | LDPE (Clear) | ||||
Drain Wire | Details | 7/0.20A (7×#32AWG) | - | 7/0.18A (7×#33AWG) | 7/0.18A (7×#33AWG) | 20/0.18TA (20×#33AWG) |
Size | 0.22mm² (#24AWG) | - | 0.178mm² (#25AWG) | 0.178mm² (#25AWG) | 0.509mm² (#21AWG) |
|
Served Shield | Approx. 79/0.10A (Approx. 79/#39AWG) |
Approx. 98/0.10A (Approx. 98/#39AWG) |
Approx. 60/0.12A (Approx. 60/#37AWG) |
Approx. 60/0.12A (Approx. 60/#37AWG) |
Approx. 100/0.18A (Approx. 100/#33AWG) |
|
Ov. Jacket | Ov. Dia. (mm) |
3.2Ø (0.126"Ø) | 4.8Ø (0.189"Ø) | 5.0±0.3Ø (0.197± 0.0118"Ø) |
5.0±0.3Ø (0.197± 0.0118"Ø) |
7.8±0.5Ø (0.307± 0.0197"Ø) |
Material | PVC | PVC | Flexible PVC | Flexible PVC | PVC | |
Color | Black/Gray | Black | Black / Blue | Black | Black | |
Roll Sizes | 50m (164 Ft) / 100m (328Ft) / 200m (656Ft) | 77m (250 Ft) / 305m (1,000Ft) | 300m (983Ft) | |||
Weight | 2kg/100m Roll | 3kg/100m Roll | 3.3kg/100m Roll | 2.6kg/250m Roll | 27kg/300m |
ELECTRICAL & MECHANICAL CHARACTERISTICS
Part No. | W3135 | W3173 | |
DC Resistance at 20°C | Inner Cond. | 0.11Ω/m(0.034Ω/Ft) | 0.02Ω/m(0.006Ω/Ft) |
Shield Cond. | 0.028Ω/m(0.0085Ω/Ft) | 0.007Ω/m(0.0021Ω/Ft) | |
Capacitance at 1kHz, 20°C (effective capacitance value between inner twin) |
46pF/m (14pF/Ft) |
50pF/m (15.3pF/Ft) |
|
Inductance | 1.0µH/m (0.31µH/Ft) | 0.7µH/m (0.21µH/Ft) | |
Characteristic Imperdance | 110Ω±5% | 110Ω±10% | |
Attenuation (6MHz) | 0.069dB/m (0.021db/Ft) |
0.0347dB/m (0.0106db/Ft) |
|
Phase Constant (6MHz) | 0.20rad/m | 0.17rad/m | |
Electrostatic Noise* | 50mV Max. | ||
Electromagnetic Noise at 10kHz* | 2.0mV Max. | ||
Microphonics** | 40mV Max. | ||
Voltage Breakdown | Must withstand at DC 500V/15sec, 20°C | ||
Insulation Resistance | 10000 MΩ × m Min. at DC 250V, 20°C | ||
Flex Life* | 10,000 cycles | 16,000 cycles | |
Tensile Strength | 362N | Over 980N | |
Emigration | Non-Emigrant to ABS resin | ||
Applicable Temperature | -20°C‾ +60°C(-4°F‾ +140°F) | ||
Standard | AES3-100X (ANSI S. 4. 40-199-X) EBU Rech, 3250-E CEI / IEC 958 / CCIR Rec. 647 UL444, CM, 300V, 60°C, #25AWG |
AES3-100X (ANSI S. 4. 40-199-X) EBU Rech, 3250-E CEI / IEC 958 / CCIR Rec. 647 UL AWM 2552, 30V, 60#176;C, VW-1, #18AWG |
